DIY lithium battery assembly is gaining traction among enthusiasts and small-scale entrepreneurs, but improper wiring can lead to catastrophic risks—especially for the Battery Management System (BMS). As the core safety component of lithium battery packs, the BMS regulates charging, discharging, and short-circuit protection. Avoiding common assembly errors is crucial to ensure BMS functionality and overall safety.

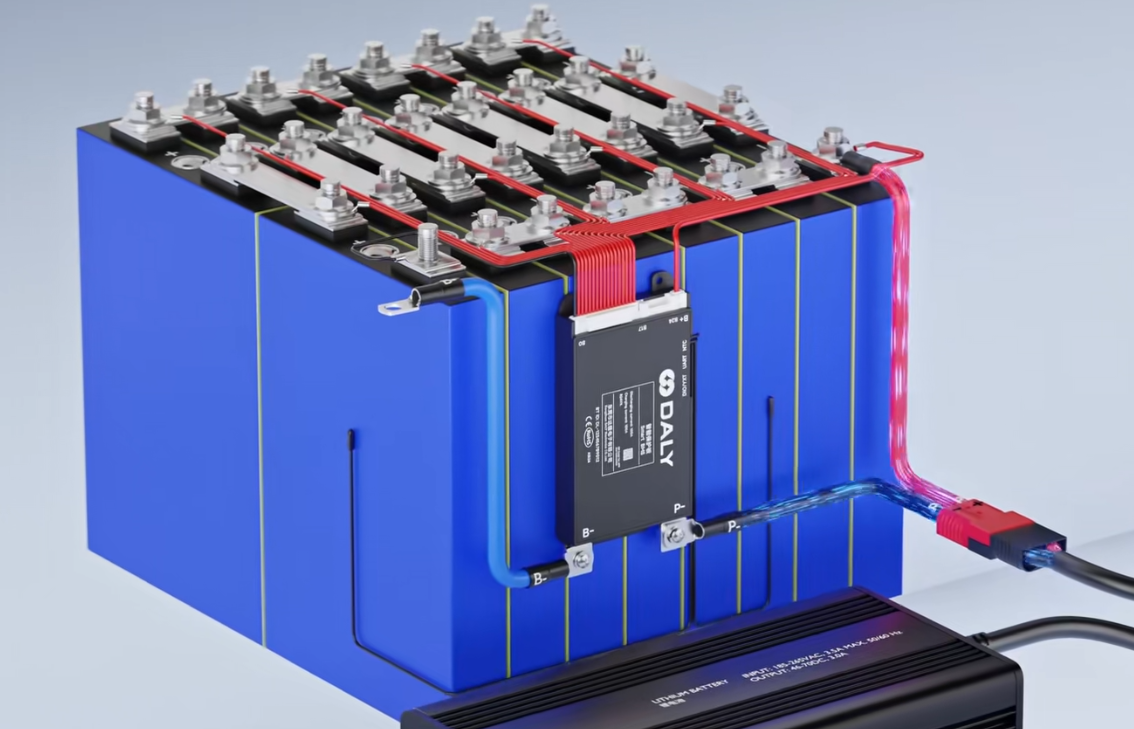

First, reversing P+/P- connections (risk level: 2/5) causes short circuits when connecting loads or chargers. A reliable BMS may activate short-circuit protection to safeguard the battery and devices, but severe cases can burn out chargers or loads entirely. Second, omitting B- wiring before the sampling harness (3/5) seems functional initially, as voltage readings appear normal. However, large currents redirect to the BMS’s sampling circuit, damaging the harness or internal resistors. Even after reattaching B-, the BMS may suffer from excessive voltage errors or failure—always connect B- to the battery’s main negative first.

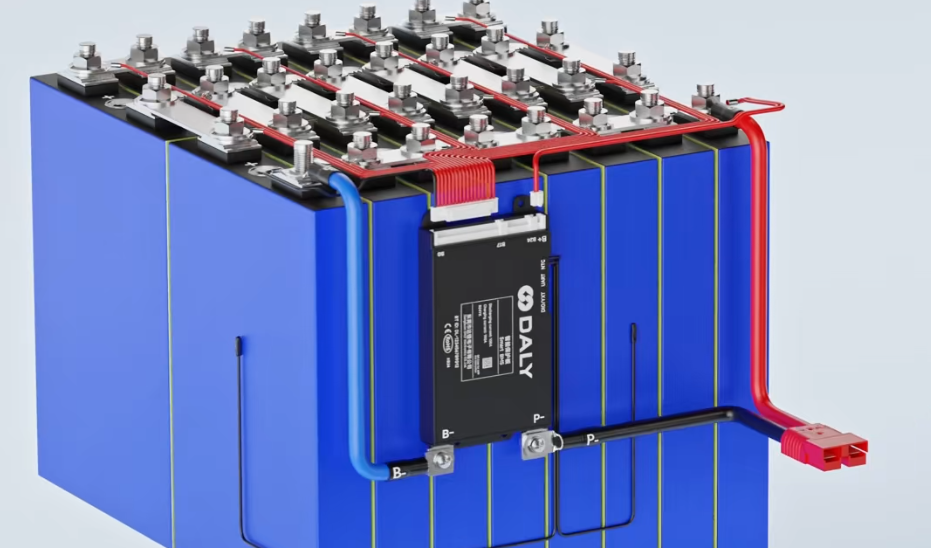

If any errors occur, disconnect immediately. Reattach wires correctly (B- to battery negative, P- to load/charger negative) and inspect the BMS for damage. Prioritizing proper assembly practices not only extends battery lifespan but also eliminates unnecessary safety hazards associated with faulty BMS operation.
