If you produce energy storage cabinets, home battery packs, or solar storage systems for the US, EU, or Australian markets, your BMS choice determines three things: whether your pack communicates with the inverter brands your customers already own, whether you can scale a single pack into a 16-pack parallel system without firmware headaches, and whether you can satisfy the UL 9540 and NFPA 855 requirements that increasingly gate market access.
Most BMS built for e-mobility or industrial vehicles cannot meet these requirements — energy storage needs a dedicated architecture with multi-protocol inverter compatibility, built-in parallel current protection, and certification documentation aligned with stationary storage standards. This guide covers the seven critical specifications, inverter ecosystem, parallel pack architecture, and certification pathways that cabinet integrators and home storage OEMs evaluate when sourcing.
Why Energy Storage Demands a Dedicated BMS Architecture
A stationary storage pack is not a portable battery. Its duty cycle, integration requirements, and certification framework create four demands that general-purpose BMS designs cannot meet.
1. Multi-Brand Inverter Ecosystem
Unlike an EV battery talking to a single proprietary motor controller, a storage pack must integrate with whatever inverter the customer owns — a Victron MultiPlus, SMA Sunny Island, Deye hybrid, Growatt SPF, Sol-Ark, or Goodwe ES, each with different protocols. The Pylontech CAN protocol has become the de-facto industry standard, supported by most inverter brands as a fallback mode. A serious storage BMS must auto-detect or be configurable to Pylontech alongside native support for major brands.
2. Parallel Pack Architecture
Home and commercial systems scale by parallel-connecting packs (typically 2-16 packs for a 5kWh to 160kWh range). This raises three engineering challenges that a dedicated storage BMS must solve with built-in protection:
- • Inrush current at connection — packs at slightly different voltages create spikes that can damage MOSFETs (needs peak current limiting)
- • Load sharing imbalance — packs draw unequal current if internal resistances differ
- • Address assignment — each pack needs a unique ID; manual DIP switches are error-prone at scale (needs software auto-addressing)
3. Deep-Cycle Endurance with Continuous Balancing
Storage packs cycle daily for 10-15 years, accumulating 3,000-5,000+ deep cycles. Cell drift accumulates each cycle, and passive balancing at the 30mA-per-channel industry baseline cannot keep up over this lifespan. Storage BMS should implement high-current passive balancing (100mA+) or active balancing (1-2A peak) to prevent capacity degradation.
4. Regulated Market Certifications
Unlike transportation batteries (UL 2271, UN 38.3), stationary storage in the US and Canada is governed by UL 9540 (system-level safety) and UL 1973 (battery component safety), with installation under NFPA 855 (fire code). The third edition of UL 9540 took effect 30 September 2024, with a 2025 revision adding Annex H for residential ESS instructions. Generic certifications will not satisfy AHJ (Authority Having Jurisdiction) review — supplier documentation must align with these specific standards.
Seven Critical Specifications for Energy Storage BMS
Procurement teams evaluate the following seven specifications — any one can disqualify a supplier.
|
Specification |
What to Verify |
DALY Home Energy Storage BMS |
| 1. Cell Config & Chemistry | 8-16S range; LFP standard, NMC for higher density | 8-16S single platform; Li-ion/LFP switchable via APP |
| 2. Continuous Current | Match to capacity & discharge rate (0.5-1C) | 4th Gen-LK 100A (custom 120A); 4th Gen-LM 150A/200A |
| 3. Inverter Protocol (critical) | Native Pylontech CAN + major brands, not "generic CAN" | Pylontech (PYLON) selectable in APP; auto-detection |
| 4. Parallel Capability | Max count, inrush protection, auto-addressing | 16 packs; 10A peak inrush (2-3A cont.); software addressing |
| 5. Balancing | Continuous balancing over thousands of cycles | Optional active 1A (LK) / 2A (LM) |
| 6. Thermal Management | High daily duty (50-70% utilisation) stresses MOSFETs | Wave heat sink, 2.5× cooling area vs flat plate |
| 7. Certification Pathway | UL 1973 component + UL 9540 system + UL 9540A fire test | Carries UL cert at BMS component level; UL 9540 docs |
Notes on Key Specifications
- • Voltage examples: 5kWh home storage (16S LFP, 51.2V); 10kWh (16S, 100-200Ah cells); telecom backup (16S, 48V); commercial (16S parallel pack groups).
- • Parallel scaling: 16-pack maximum on a single BMS network; the 10A peak inrush limiter prevents MOSFET damage at connection; optional 3.5-inch display consolidates monitoring of all 16 packs.
- • Certification distinction: UL 1973 covers the BMS-managed battery module (component); UL 9540 covers the complete ESS (battery + BMS + enclosure + inverter, tested together); UL 9540A is the fire-propagation test method referenced by both UL 9540 and NFPA 855.
Five Common Procurement Mistakes
Even experienced storage cabinet OEMs make these mistakes when sourcing for new product lines — worth checking against your evaluation criteria:
- • Assuming "CAN bus" = inverter integration — Pylontech uses CAN 2.0B extended frame with specific 29-bit identifiers; implementations that do not match precisely fail communication even when the physical layer connects. Test with your actual target inverter before commitment.
- • Sourcing transportation BMS for stationary storage — BMS for e-bikes/scooters/RVs lack the UL 9540 / NFPA 855 certification pathway and cannot pass AHJ review in regulated markets.
- • Underestimating parallel pack engineering — the first 1-2 packs may "just work," but at 4-8 packs you see inrush MOSFET failures, and at 12-16 packs address conflicts and load-sharing problems become production issues. Specify maximum parallel count from the start.
- • Skipping active balancing for long-cycle applications — a 30mA passive BMS lets cell drift accumulate until the weakest cell limits the whole pack; for 10+ year warranty products, specify active or high-current passive balancing from day one (retrofitting is not viable).
- • Ignoring UL 9540 edition effective dates — third edition took effect 30 September 2024; you cannot list to earlier versions after this date. Verify supplier documentation reflects the current edition and the March 2025 Annex H residential additions.
DALY Home Energy Storage BMS in Energy Storage OEM Applications
DALY's 4th Generation Home Energy Storage BMS is a dedicated energy storage product line — separate from DALY's R-Series general-purpose BMS used in e-mobility and industrial applications — designed specifically for the duty cycle, integration, and certification requirements of stationary storage.
Key Differentiators for Energy Storage OEMs

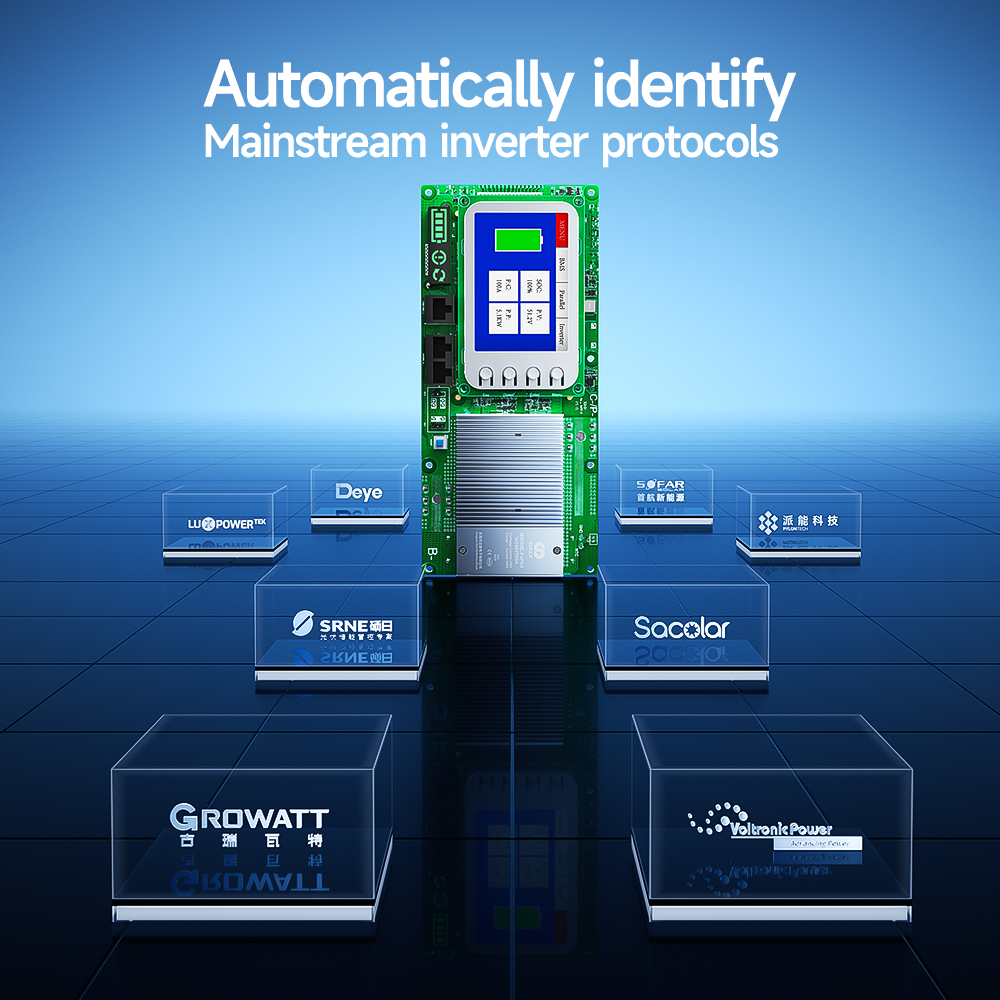

- • Built-in Pylontech (PYLON) protocol selectable in APP, plus auto-detection of major inverter brands

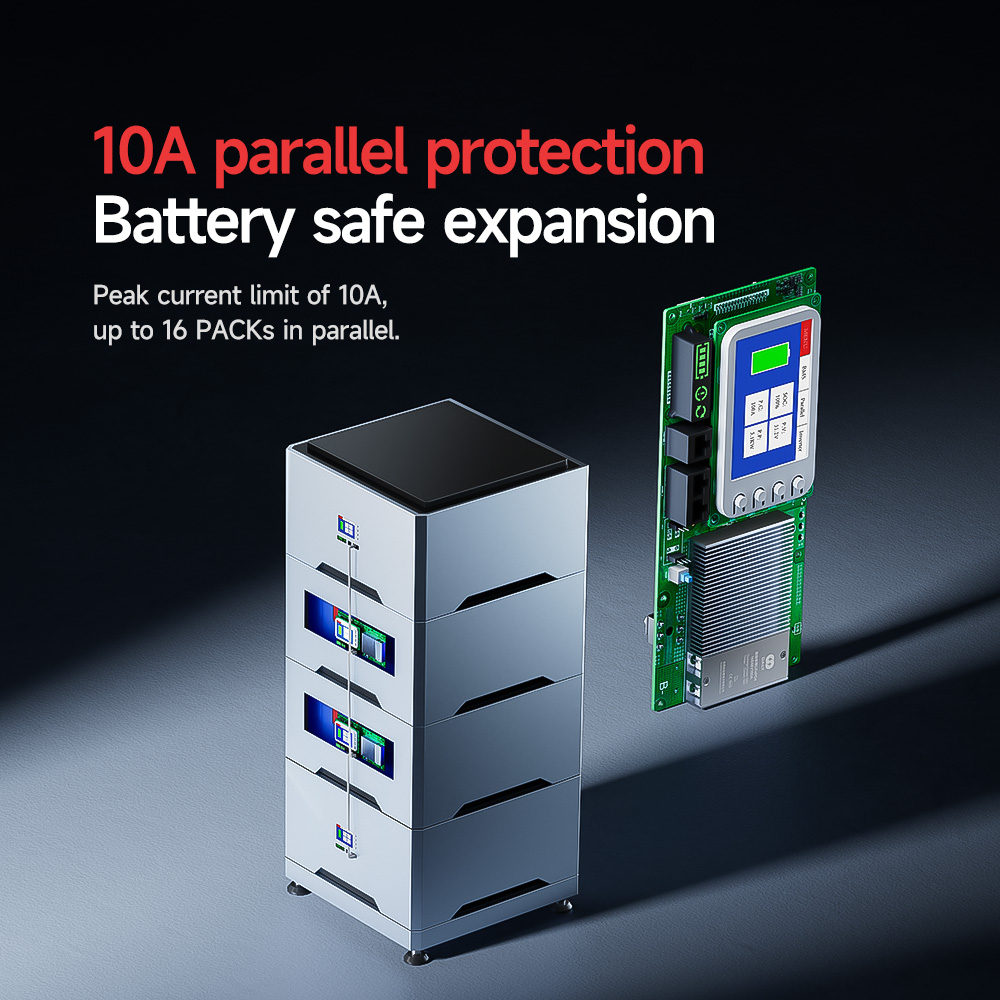

- • 16-pack parallel with 10A peak inrush protection (2-3A continuous) and software automatic address assignment — no manual DIP switches
- • Optional active balancing: 1A peak (4th Gen-LK) or 2A peak (4th Gen-LM) for multi-year cycle life
- • Wave-pattern heat sink with 2.5× cooling surface area vs flat plate, for sustained high-utilisation duty
- • Optional 3.5-inch consolidated display for unified monitoring of up to 16 parallel packs
- • Carries UL certification at the BMS component level, with documentation for your system-level UL 9540 process; trusted by integrators in 130+ countries
Application Coverage
The Home Energy Storage BMS serves three primary segments, matching DALY's three official application scenarios (home / building / base station energy storage):
- • Home Storage — 5-30kWh single-cabinet or expandable systems for residential solar+storage
- • Building / Commercial Storage — parallel pack systems for C&I energy management, scaling up to approximately 160kWh on a single 16-pack BMS network (larger systems combine via inverter-level master/slave architecture)
- • Telecom Base Stations — 48V backup systems requiring long-cycle endurance and remote batch management via Smart APP / IoT (a strong fit for the 16-pack parallel and remote monitoring architecture)
OEM customisation available: custom branding, custom firmware (specific inverter protocols, custom CAN messages), and custom hardware configurations for new cabinet platforms.
Frequently Asked Questions
Q1: Does the DALY Home Energy Storage BMS work with my specific inverter brand?
It includes built-in auto-detection of major inverter protocols, with Pylontech (PYLON) directly selectable in the APP. Since Pylontech CAN is the de-facto industry standard, most major brands (Victron, Deye, Growatt, Sol-Ark, Goodwe, SMA) support Pylontech-compatible mode. For verification with your specific model and firmware, contact our engineer with the brand/model number.
Q2: What's the maximum system size using parallel packs?
The Home Energy Storage BMS supports up to 16 packs in parallel. Using the 4th Gen-LM at 200A continuous with 16S LFP (~10kWh per pack), a fully parallel system reaches approximately 160kWh on a single BMS network. For larger commercial systems, parallel BMS networks combine via inverter-level master/slave architecture. The built-in 10A peak inrush limiter prevents MOSFET damage during pack connection events.
Q3: What UL certifications does the DALY Home Energy Storage BMS carry?
It carries UL certification at the BMS component level; the specific certification scope is documented and available on request to confirm alignment with your target market. For US/Canadian energy storage, the most relevant standards are UL 1973 (battery component safety) and UL 9540 (energy storage system safety). Note that UL 9540 is a system-level certification — the complete ESS (battery + BMS + enclosure + inverter) must be tested as an integrated system. DALY provides the BMS-level documentation required for your system-level process; contact our engineer for the latest certificate documentation.
Q4: How does the auto-address-assignment work for parallel installations?
Traditional parallel architectures require manual DIP switch setting at each pack — error-prone and slow at scale. The Home Energy Storage BMS uses software automatic address assignment: when packs are connected to the parallel bus and powered, each self-negotiates its address with the master pack. This eliminates installation errors and reduces commissioning time. The optional 3.5-inch display then automatically discovers and shows data from all addressed packs (up to 16).
Q5: What's the MOQ for OEM custom configurations?
MOQ depends on customisation level. Standard 4th Gen-LK/LM with neutral packaging: lower MOQ tier. Custom firmware (specific inverter protocols, custom CAN messages, custom alarm thresholds): higher tier with NRE charges. Custom hardware (connectors, display): highest tier. For new product lines, request a sourcing consultation to discuss MOQ flexibility based on project timeline and total volume.
Key Takeaways
- • Energy storage demands a dedicated BMS architecture — not a general-purpose BMS adapted from e-mobility or industrial designs.
- • Seven critical specs: cell config/chemistry, continuous current, inverter protocol compatibility, parallel capability, balancing, thermal management, certification pathway.
- • Pylontech CAN is the de-facto industry standard — verify native support, not just "generic CAN."
- • Parallel engineering becomes critical above 4-8 packs — specify inrush protection, auto-addressing, and consolidated monitoring from the start.
- • UL 9540 third edition effective 30 September 2024 — verify supplier documentation reflects current standards before committing to production.
- • The DALY Home Energy Storage BMS (4th Generation) is purpose-built for storage with built-in Pylontech compatibility, 16-pack parallel, and a UL 9540 documentation pathway — serving home, building, and telecom base station storage.
Ready to Source BMS for Your Energy Storage Cabinet or Home Battery Product?
For storage cabinet OEMs and home battery manufacturers:
- • Request OEM consultation — bulk pricing, MOQ flexibility, custom firmware for proprietary inverter protocols
- • Request UL certification documentation for your system-level UL 9540 process
- • Request the complete 4th Gen-LK/LM specification sheet, parallel architecture diagrams, and product samples for inverter compatibility testing
