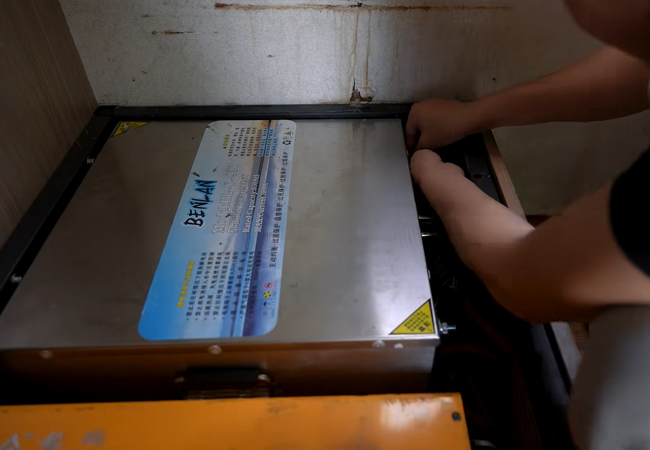

RV travel has grown in popularity globally, with lithium batteries favored as core power sources for their high energy density. However, deep discharge and subsequent BMS lockup are prevalent issues for RV owners. An RV equipped with a 12V 16kWh lithium battery recently faced this exact problem: after being fully discharged and left unused for three weeks, it failed to supply power when the vehicle was turned off and couldn’t be recharged. Without proper handling, this could lead to permanent cell damage and thousands of dollars in replacement costs. This guide breaks down the causes, step-by-step fixes, and prevention tips for deep-discharged RV lithium batteries.
The primary cause of deep discharge lockup lies in standby power consumption: even when not powering external devices, the Battery Management System (BMS) and built-in balancer draw minimal power. Leave the battery unused for more than 1-2 weeks, and the voltage will drop steadily. When a single cell’s voltage falls below 2.5V, the BMS triggers over-discharge protection and locks up to prevent further damage. For the 12V RV battery mentioned earlier, three weeks of inactivity pushed the total voltage to an extremely low 2.4V, with individual cell voltages as low as 1-2V—nearly rendering them irreparable.
Follow these steps to fix a deep-discharged RV lithium battery:

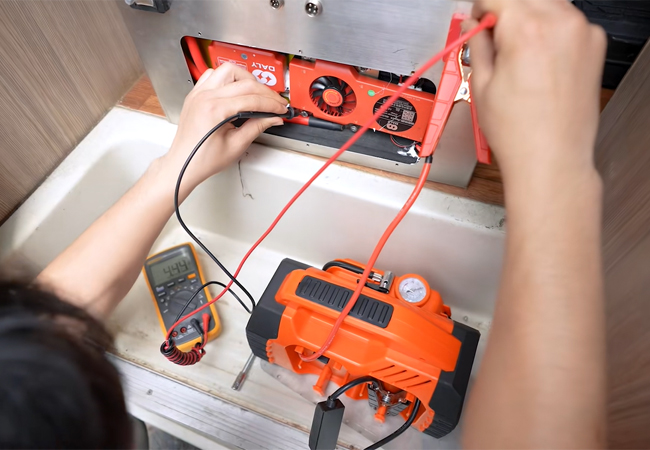

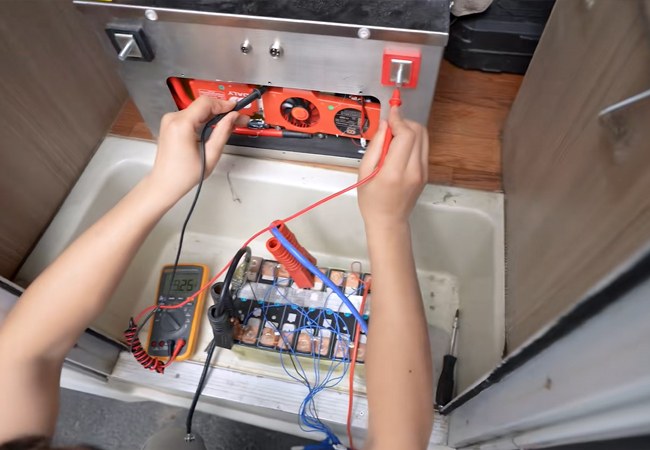

- Cell Recharging Activation: Use professional DC charging equipment to gradually recharge each cell (avoid direct high-current charging). Ensure correct polarity (negative to battery negative, positive to battery positive) to prevent short circuits. For the 12V battery, this process raised individual cell voltages from 1-2V to over 2.5V, restoring cell activity.
- BMS Parameter Adjustment: Connect to the BMS via Bluetooth to set the single-cell undervoltage protection threshold (2.2V is recommended) and reserve 10% residual power. This adjustment reduces the risk of re-lockup from deep discharge, even during short periods of inactivity.
- Activate Soft Switch Function: Most RV lithium battery BMS feature a soft switch. Once activated, owners can quickly reactivate the battery themselves if deep discharge occurs again—no disassembly or professional tools required.
- Verify Charging/Discharging Status: After completing the above steps, start the RV or connect an inverter, and use a multimeter to check the charging current. The 12V RV battery in our example recovered to a normal charging current of 135A, fully meeting the RV’s power needs.
Key Prevention Tips to Extend Battery Lifespan:
- Recharge promptly: Recharge the lithium battery within 3-5 days of discharge to avoid prolonged inactivity. Even if the RV isn’t used short-term, start it for 30 minutes of charging weekly or use a dedicated charger.
- Reserve backup power: Set the BMS to retain 10% backup power. This prevents lockup from over-discharge even if the RV is idle for 1-2 months.
- Avoid extreme environments: Do not store lithium batteries in temperatures below -10℃ or above 45℃ for long periods. High or low temperatures accelerate power loss and increase deep discharge risks.
