As the global adoption of electric vehicles (EVs) and renewable energy storage accelerates, the longevity of lithium-ion battery packs has become a primary concern. At the heart of this issue lies a critical technology within the Battery Management System (BMS) known as cell balancing. This process is essential for overcoming the "barrel effect," where the weakest cell limits the entire pack's performance.
Why Battery Imbalance Occurs Over time, individual cells within a battery pack inevitably develop inconsistencies due to manufacturing tolerances, uneven thermal distribution, or aging. Without intervention, a single cell with lower capacity or higher internal resistance will hit its voltage limit earlier than the others during charging. This forces the BMS protection board to cut off power prematurely, leaving the rest of the pack undercharged and significantly reducing the overall usable capacity.
Passive vs. Active Balancing: Understanding the Difference To combat this, modern smart BMS solutions employ two main strategies:
Passive Balancing: This method uses resistors to dissipate excess energy from high-voltage cells as heat, allowing lower-voltage cells to catch up. It is cost-effective and suitable for low-power applications but less efficient for large capacity banks.

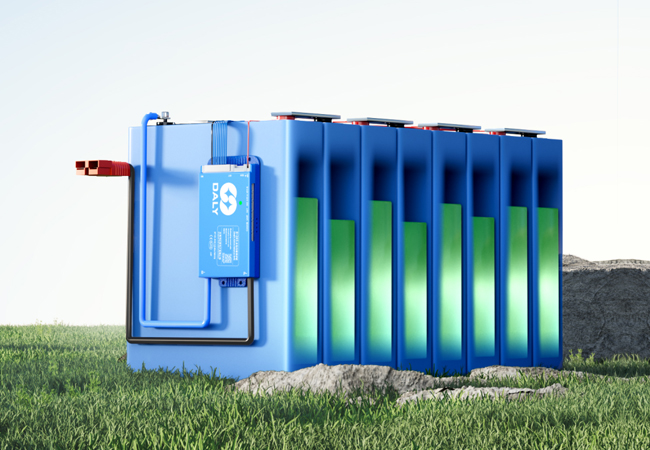

Active Balancing: This is the future of lithium battery equalization. Instead of wasting energy, active balancers utilize capacitors or inductors to transfer energy from high-voltage cells to low-voltage ones. This energy transfer maximizes efficiency and is crucial for high-capacity LiFePO4 battery packs used in solar energy storage.
The Impact on Cycle Life
Effective cell balancing does more than just restore capacity; it extends the battery's cycle life. By keeping voltage differences ($V_{diff}$) to a minimum (often within 30mV or even 5mV), the Battery Management System prevents individual cells from being overstressed.
For consumers and industrial integrators alike, choosing a BMS with superior balancing capabilities—whether active or passive—is the most effective way to protect their investment. As technology evolves, high-current active balancing is setting the new standard for sustainable energy management.
