DALY Active Equalizer Optional Instructions
Sensitive Detection Full Time Active Equalization It will not be restricted by battery charging, discharging, static, dormant state, etc. Once the cell voltage triggers the active equalization, it can automatically start power transmission until voltage equalizing.
Improve performance Delay deterioration
Realize energy transfer between cells, prevent premature deterioration of some cells, so that the overall battery pack power stronger and more stable.
Equalization of Power Transfer
Transfer power with O~1A current, non-internal resistance energy dissipation equalization and low heating, can be connected to the battery pack for a long time.
Take 4 battery packs as an example, actively balanced before and after effects
Strong Suitability Easy to Assemble
DALY active equalizer with 24AWG wire, can be accurate voltage acquisition, suitable for different brands of BMS and easy to connect battery packs.
Selected Component Precision Manufacture
Dustproof,shockproof,anti-static,and the shell can withstand 80℃ high temperature.

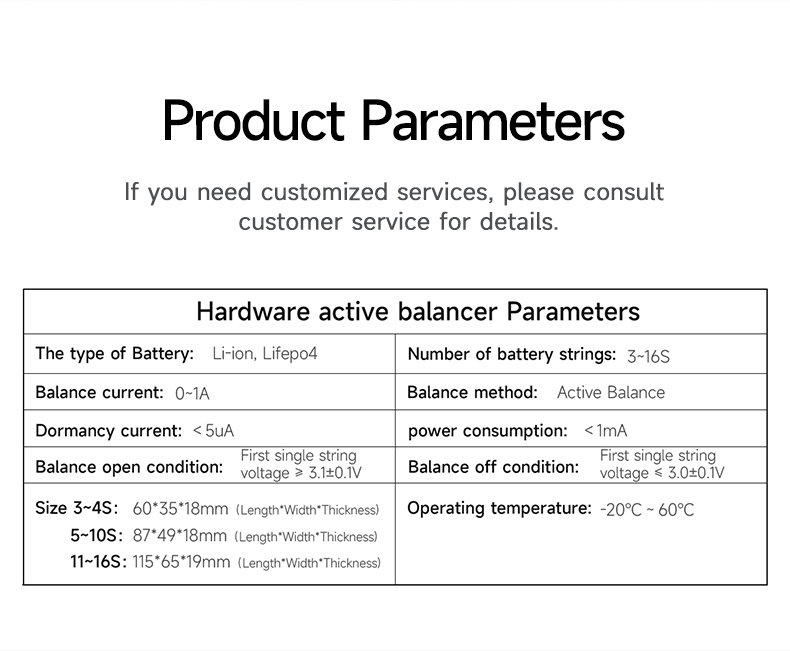

More Advantages Stronger Performance
SIX PRODUCT ADVANTAGES
Lithium Electricity Standard Wide Application
Suitable for Li-ion, LiFePO4, and LTO battery packs.It can protect the voltage balance of the cell when installed in the battery pack.
DALY BMS Wire Diagram
wiring from different manufacturers is not universal, please make sure to use matching wiring.

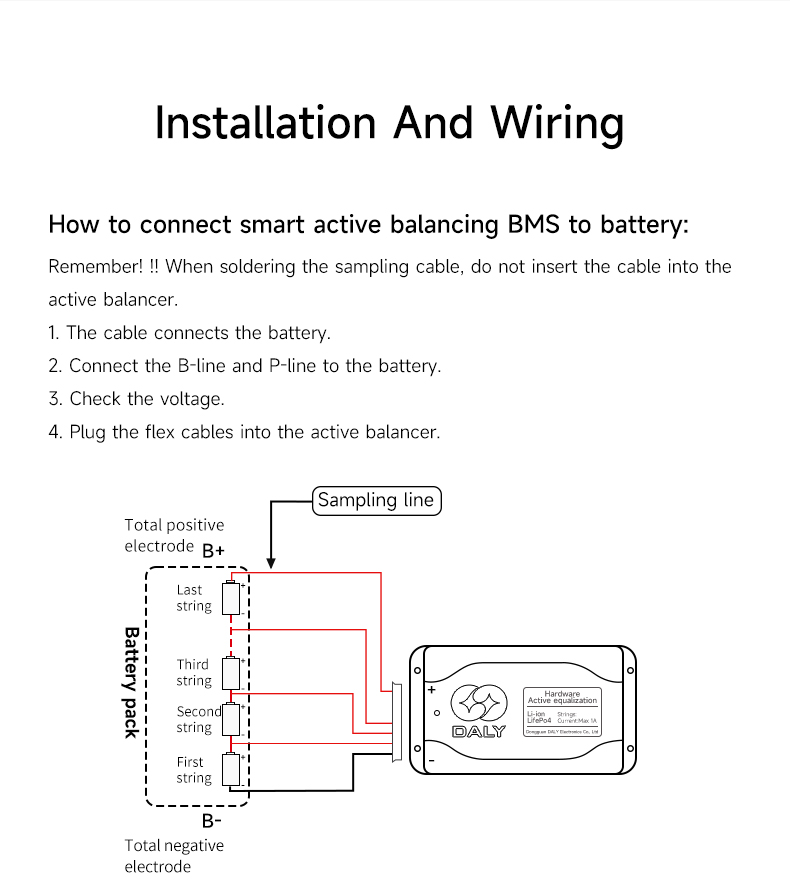

Sequence of battery connection for active equalizer:1.Remember!! Do not insert active equalizer when welding sampling line. 2.Start from the thin black wire connecting the first string of negative battery B-, connect the second wire (red line) to the first string of positive battery,then connect the positive and negative terminals of each strings of batteries in turn, until the last string of total positive terminal B+.
3.After the wiring is connected, the plug should not be directly inserted into the active equalizer. Use a multi-meter to measure the voltage between each two adjacent metal terminals through the back of the cord plug, or use a cord detector to measure the voltage directly. If it is Li-ion battery voltage should be between 3.0~4.15V,LiFepo4 battery should be between 2.5~3.6V, LTO battery should be between 1.8~2.8V,ensure that the voltage is correct before the next operation.
4.Insert the line into the active equalizer.
Finally, if you have any questions please contact customer service to help you solve.
